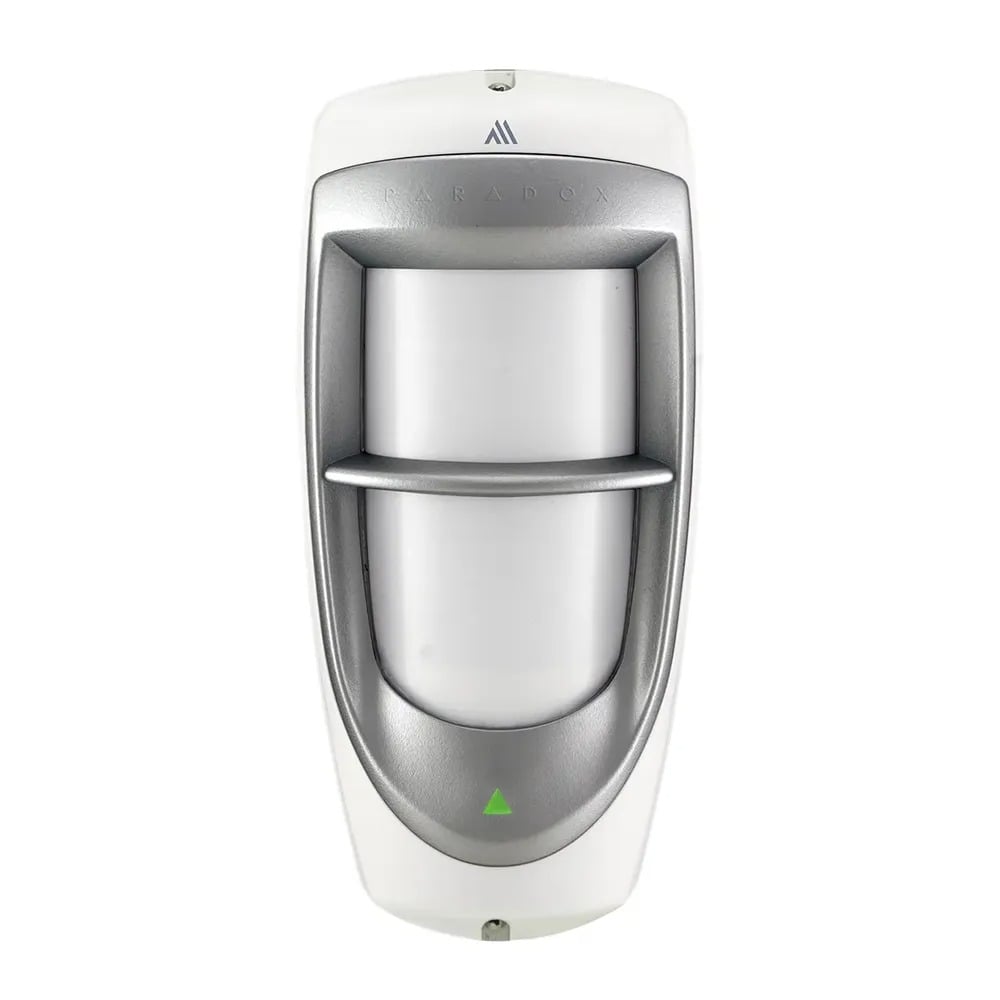

Wireless outdoor motion detector Paradox PMD85M (white, for M25 control panel)
- General
- ModelPMD85M
- TypeWireless Outdoor Motion Detector with Pet Immunity
- CompatibilityParadox M25 centrale (868 MHz, White)
- Sensor TypeDual-element infrared PIR (×2)
- Coverage90° – 11 m × 11 m (36 ft × 36 ft)
- Detection Speed0.2 m/s to 3.5 m/s (0.6 ft/s to 11.5 ft/s)
- Pet ImmunityUp to 40 kg
- Wireless TypeGFSK two-way with frequency and encryption hopping
- RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
- RF Power868 MHz: +14 dBm radiated; 914 MHz: +22 dBm (where permitted)
- Transmission Time<20 ms
- Supervision Time20 min, 10 min (default), or 3 min
- IndicatorsApp shows battery, temperature, TX/RX values
- Battery3 × AA lithium, up to 6+ years (normal usage)
- Firmware UpgradeRemotely over the air (via BlueEye app)
- Installation EnvironmentOutdoor (impact- and temperature-resistant housing)
- Operating Temperature–20 °C to +40 °C (–4 °F to 104 °F)
- Auto-LearnYes
- ColorWhite
- Dimensions8.3W × 17.5H × 7.4D cm (3.29W × 6.9H × 2.9D in.)
- Weight0.27 kg
- CertificationsCE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247
Specifications
| Brand | PARADOX |
