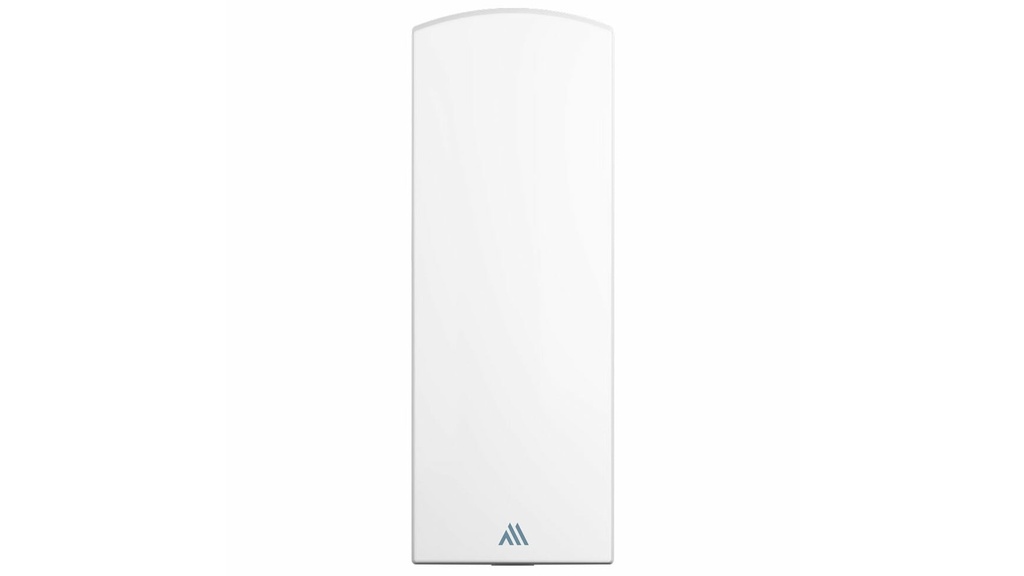

Wireless 1-channel I/O module Paradox PGMZ1M (868 MHz, white, for M25 control panel)
- General
- ModelPGMZ1M
- TypeWireless 1-Channel Input/Output Module
- CompatibilityParadox M25 centrale (868 MHz, White)
- Inputs/Outputs1 programmable relay output (24V/1A max), 1 zone input
- Wireless TypeGFSK two-way with frequency and encryption hopping
- RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
- RF Power868 MHz: +14 dBm radiated; 914 MHz: +22 dBm (where permitted)
- Status IndicatorsApp shows output status, tamper, power supply, battery, temperature, TX/RX values
- Transmission TimeLess than 20 ms
- Supervision Time20 minutes, 10 minutes (default), or 3 minutes
- Power SupplyAC/DC 5–16 V, 300 mA minimum
- Battery—
- Firmware UpgradeRemotely over the air (via BlueEye app)
- Installation EnvironmentIndoor/Outdoor
- Operating Temperature–30 °C to +50 °C (–22 °F to +122 °F)
- Auto-LearnYes
- ColorWhite
- Dimensions4.6W × 12.45H × 3.3D cm (1.8W × 4.9H × 1.3D in.)
- Weight77 g
- CertificationsCE, FCC 15.247
Specifications
| Brand | PARADOX |
