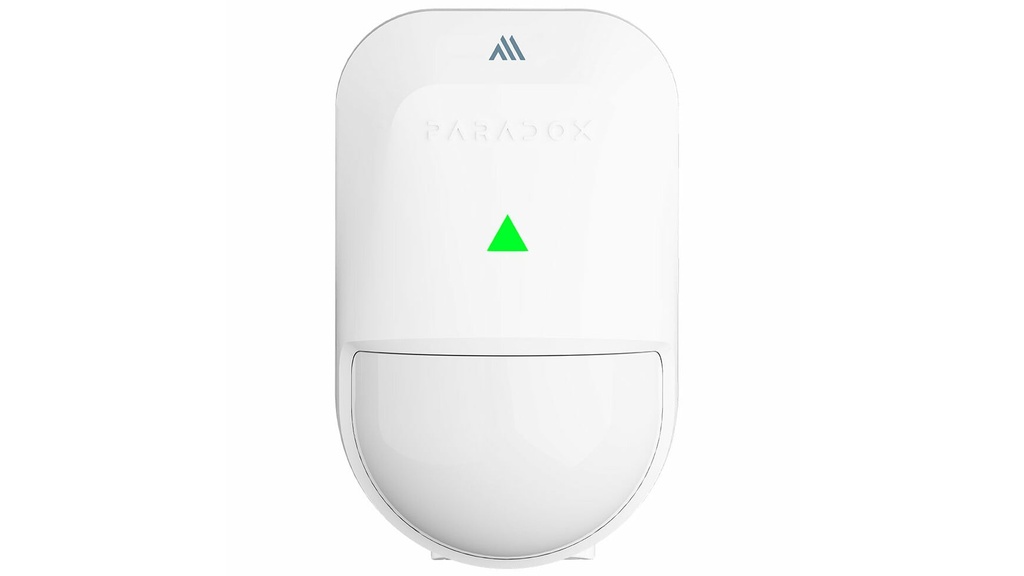

Wireless motion detector Paradox PMD5M (white)
PMD5M- General
- ModelPMD5M
- TypeIndoor Miniature Wireless Motion Detector
- CompatibilityParadox M25 centrale (868 MHz, White)
- Sensor TypeDual-element PIR
- Coverage110° – 12 m × 12 m (39 ft × 39 ft)
- Detection Speed0.2 m/s to 3.5 m/s (0.6 ft/s to 11.5 ft/s)
- Wireless TypeGFSK two-way with frequency and encryption hopping
- RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz) – region dependent
- RF Power868 MHz: up to +14 dBm radiated; 914 MHz: up to +22 dBm (where permitted)
- Transmission Time<20 ms
- Supervision Time20 min, 10 min (default), or 3 min
- IndicatorsBattery, temperature, TX/RX values (via app)
- Battery1 × CR123 lithium, up to 6+ years (normal usage)
- Firmware UpgradeRemotely over the air (via BlueEye app)
- Installation EnvironmentIndoor
- Operating Temperature–20 °C to +40 °C (–4 °F to 104 °F)
- Auto-LearnYes
- ColorWhite (also available in Grey)
- Dimensions5.61W × 9.15H × 1.75D cm (2.2W × 3.6H × 0.7D in.)
- Weight80 g
- CertificationsCE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247
Specifications
| Brand | PARADOX |
