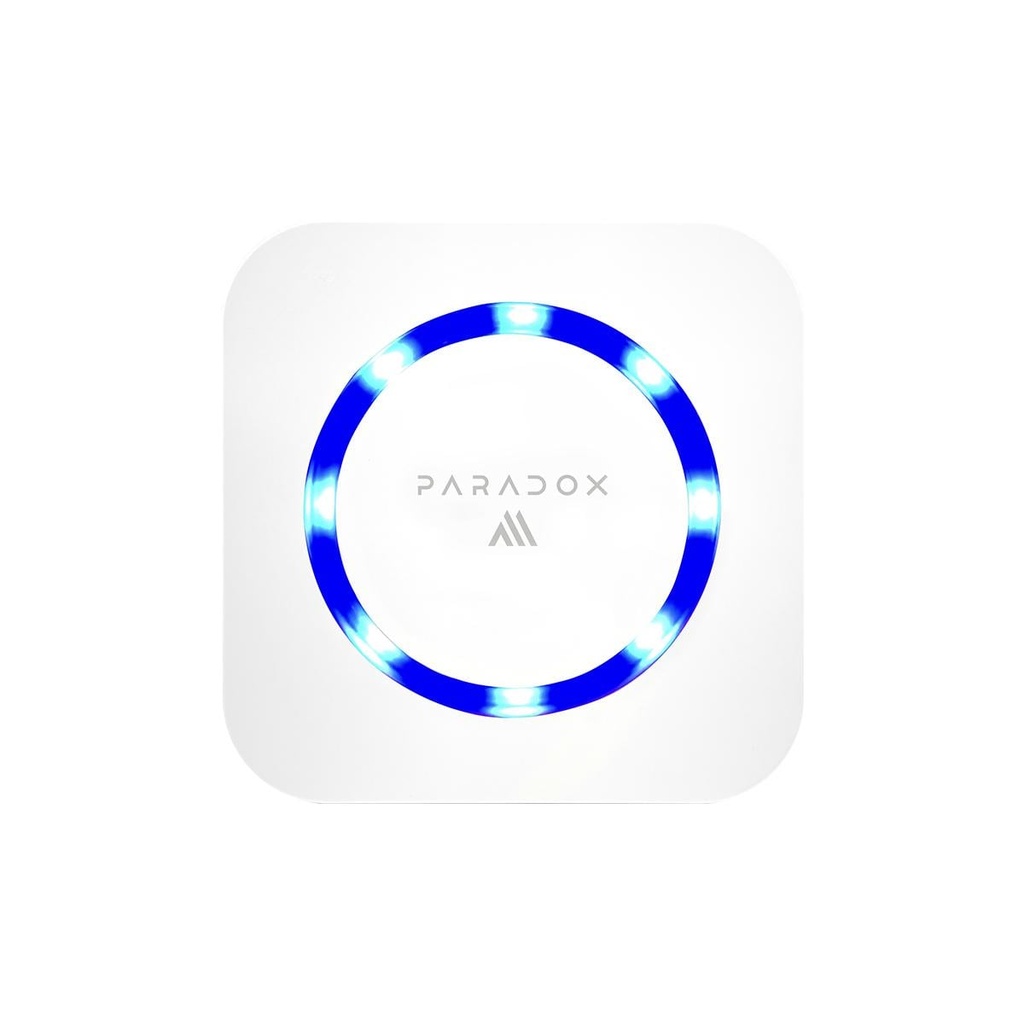

Wireless door chime Paradox CM1M (868 MHz, white, for M25 control panel)
CM1M- General
- ModelCM1M
- TypeWireless Chime and Sound Player
- CompatibilityParadox M25 centrale (868 MHz, White)
- FunctionPlays chime tones for entry/exit, burglary, fire, and panic alarms; adjustable ringtones and volume
- Wireless TypeGFSK two-way with frequency and encryption hopping
- RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
- RF Power868 MHz: up to +14 dBm radiated; 914 MHz: up to +22 dBm (where permitted)
- Number of Tones6 zone chime tones, 8 burglary tones, 8 fire tones, 1 entry tone, 1 exit tone, 8 panic tones
- IndicatorsApp shows power, battery, temperature, TX/RX values
- Transmission Time<20 ms
- Supervision Time20 min, 10 min (default), or 3 min
- Power SupplyAC 110–260 V, 50/60 Hz (direct wall socket plug-in)
- Battery—
- Firmware UpgradeRemotely over the air (via BlueEye app)
- Installation EnvironmentIndoor
- Operating Temperature–30 °C to +70 °C (–22 °F to +158 °F)
- Auto-LearnYes
- ColorWhite
- Dimensions8.4W × 8.4H × 4.8D cm (3.3W × 3.3H × 1.9D in.)
- Weight82 g
- CertificationsCE, FCC 15.247
Specifications
| Brand | PARADOX |
